LU/LA

We install LU/LA applications intended for use in low rise buildings with low occupancy, where a full passenger elevator is not required.

Configurations

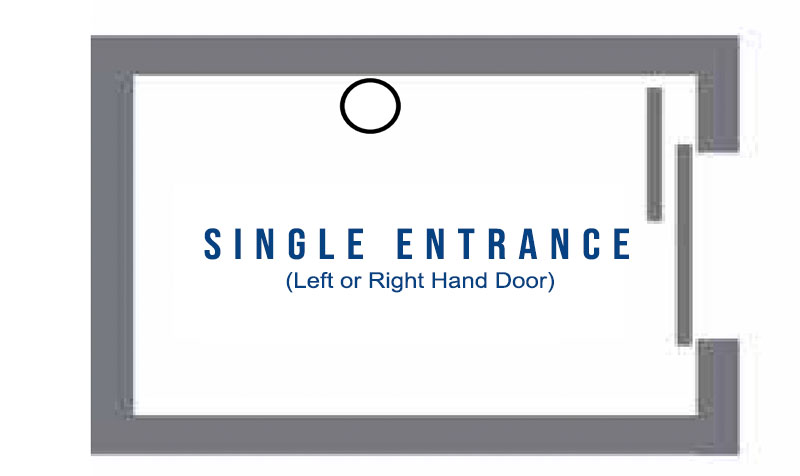

A Limited Use/Limited Application elevator is a cost effective way to transport the public from one landing to another. A LU/LA elevator is a power passenger elevator in which the use and application is limited by size, capacity, speed and rise. We install LU/LA elevators that are the perfect blend of commercial grade equipment engineered specifically for low use applications. They are a code compliant automatic elevator with a variety of platform configurations and can service up to 6 landings. The wide selection of cab finishes and options ensure that it will blend into any setting. Ideal for:

  • Schools
  • Churches
  • Small Businesses
  • David Singh
  • 1-855-545-2088
  • info@americanaelevators.com
Contact Us

Finishes

We offer a variety of standard attractive and durable wall and ceiling finishes. If you’re looking for something a little different, the AmeriCab division can design an elevator to fit your vision.

Customizable Finishes
  • Cab Walls
  • Ceiling
  • L.E.D. Lighting
  • Handrail
  • Cab Wall Trim

Main Power Requirements

The standard motor on the pump can be ordered to suit either three phase or single phase power.
Standard: 208 VAC Three phase 30 amps
Optional: 230 VAC Single phase 40 amps

Emergency Battery Lowering
In the event of a power outage the elevator is provided with a second power source that allows the car to be lowered to the lowest landing. While descending, the car can stop and the passenger can exit the car on any landing along the way.

CAPACITIES

1,400 lbs

A max capacity ideal for low use

SPEEDS

30 FPM

Available speeds up to 30fpm.

PLATFORM SIZE

18sq. ft.

Ideal space to move the public from one landing to another.

TRAVEL

25FEET

Up to 25 feet of travel, depending on local codes
